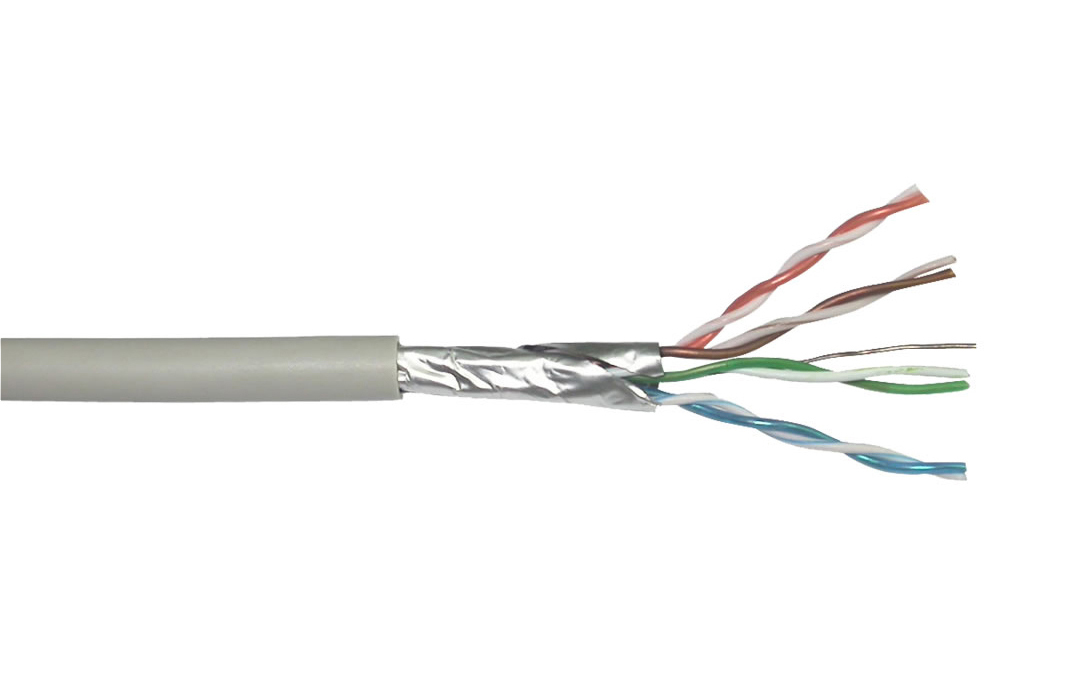

FTP CAT 5E

Used for high speed transmission of voice and data between central and peripheral system for frequencies up to 100Mhz.

产品结构

Conductor: BC/CCA

Specification:

  ●Solid: 4*2*1/0.5mm, 4*2*1/0.51mm

  ●Stranded: 4*2*7/0.18mm, 4*2*0.20mm

Insulation: PE

Jacket: FR PVC/LSOH

Packing: 305m/CTN


电气性能

Dielectric strength:

2.5 KV dc-2 Seconds

Conductor resistance:

Max 9.38 Ohm/100M at 20℃

Max. ring resistance:

16.8 Ohm/100M at 20℃

Max. mutual capacitance:

560 pf/100M

Max. capacity unbalance:

330 pf/100M

Strandard impedance:

100±15 Ohm between 1Mhz and 100Mhz

Minimum bending radius:

50mm

Working temperatures:

-20~60℃


回波损耗

Frequency (Mhz)

Return Loss(dB)

Frequency (Mhz)

Return Loss(dB)

0.772Mhz

20.0

20Mhz

25.0

1Mhz

20.0

25Mhz

24..3

4Mhz

23.0

31.25Mhz

23.3

8Mhz

24.5

62.5Mhz

20.7

10Mhz

25.0

100Mhz

19.0

16Mhz

25.0




衰减
(20℃/(68 °F))


Frequency (Mhz)

Attenuation(dB/100M)

Frequency (Mhz)

Attenuation(dB/100M)

0.772Mhz

1.8

20Mhz

9.3

1Mhz

2.0

25Mhz

10.4

4Mhz

4.1

31.25Mhz

11.7

8Mhz

5.8

62.5Mhz

17.0

10Mhz

6.5

100Mhz

22.0

16Mhz

8.2
