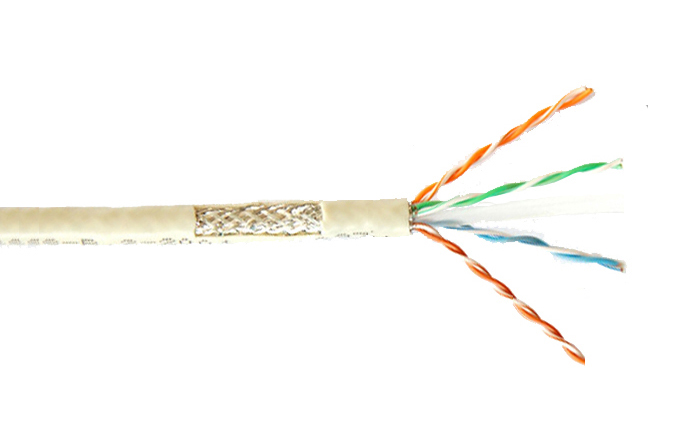

SFTP CAT 6

Used for high speed transmission of voice and data between central and peripheral system for frequencies up to 250Mhz.

产品结构

Conductor: BC/CCA

Specification:

  ●Solid: 4*2*1/0.5mm, 4*2*1/0.51mm, 4*2*1/0.574mm

  ●Stranded: 4*2*7/0.18mm, 4*2*7/0.20mm

Insulation: PE

Shield: Al foil

Braiding: BC/TC

Jacket: UFR PVC/LSOH

Packing: 305m/CTN


电气性能

Dielectric strength:

2.5 KV dc-2 Seconds

Conductor resistance:

Max 7.0 Ohm/100M at 20℃

Max. ring resistance:

16.8 Ohm/100M at 20℃

Max. mutual capacitance:

560 pf/100M

Max. capacity unbalance:

330 pf/100M

Strandard impedance:

100±15 Ohm between 1Mhz and 100Mhz

Minimum bending radius:

60mm

Working temperatures:

-20~60℃


回波损耗

Frequency (Mhz)

Return Loss(dB)

Frequency (Mhz)

Return Loss(dB)

1Mhz

20.0

100Mhz

25.0

10Mhz

25.0

155Mhz

22.8

31.3Mhz

25.0

200Mhz

21.7

62.5Mhz

25.0

250Mhz

20.5


衰减
(20℃/(68 °F))

Frequency (Mhz)

Attenuation(dB/100M)

Frequency (Mhz)

Attenuation(dB/100M)

1Mhz

1.9

100Mhz

18.9

10Mhz

5.7

155Mhz

23.9

31.3Mhz

10.2

200Mhz

27.5

62.5Mhz

14.7

250Mhz

31.2
